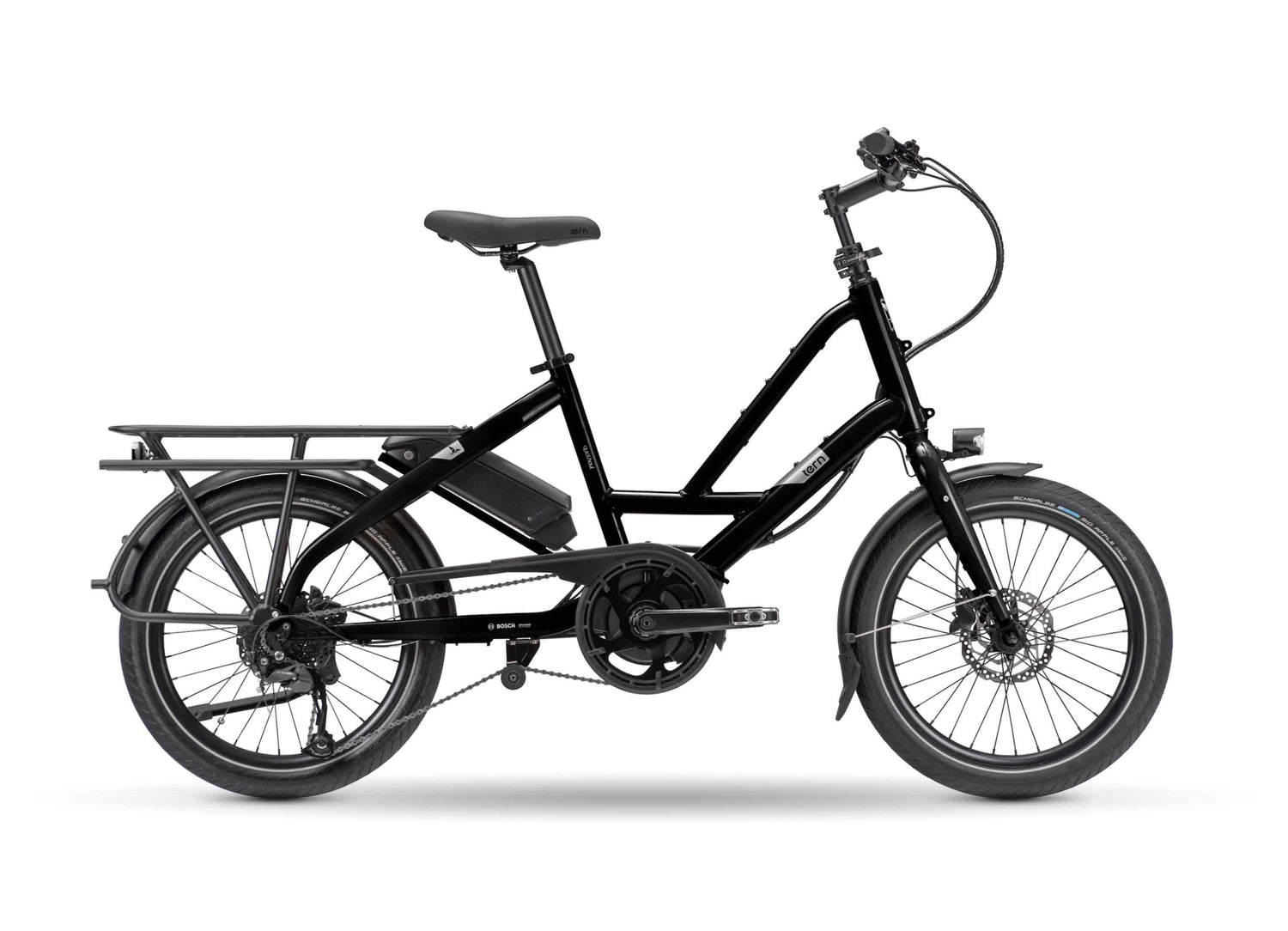

Tern Quick Haul P9
Financing available
Easy approval • Flexible terms
Tern Quick Haul P9 - Black is backordered and will ship as soon as it is back in stock.
Checking availability...
View all stores
Tern Quick Haul P9 - Black is backordered and will ship as soon as it is back in stock.
Details
What Makes it a P9 Performance?- Bosch Performance Sport motor provides up to 65 Nm of torque and 300% support, motor assist up to 32 km/h (Canadian e-bike limit)
- 1x9-speed Shimano Alivio groupset with trigger shifter
Quick Haul Highlights
- Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
- Fits riders 160—195 cm (5'3"—6'5"), and also riders 145—180 cm (4'9"—5'11") when equipped with a shorter, 350 mm seatpost
- Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
- Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
- Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
- Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
Specs
| Frame | Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg |
| Fork | Cargo, steel, EFBE approved: 150 kg |
| Rims | Kinetix Comp, for disc |
| Hubs | Shimano Disc |
| Spokes | Stainless Steel |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern custom, forged 6061-AL crankarm |
| Shifters | Shimano Alivio, 1 x 9 spd, trigger |
| Rear Derailleur | Shimano Alivio Shadow |
| Cassette/Freewheel | Shimano 11-36T, 9 spd |
| Chain | KMC for eBike, 9 spd |
| Brakes | Shimano, hydraulic disc |
| Brake Levers | Shimano, hydraulic disc |
| Handlebars | Low riser, 31.8, 6061-AL |
| Tape/Grips | Velo ergonomic, lock-on |
| Stem | Speedlifter, 150 mm extension, 3D Forged stem, 31.8 |
| Headset | TH, cartridge bearings |
| Seatpost | 31.6 mm, 6061-AL, micro-adjust clamp |
| Saddle | Velo Comfort |
| Pedals | Urban with non-slip surface, sealed bearings |
| Accessories & Extras | BELL: Aluminum CHAINGUARD: SKS Chainblade KICKSTAND: Pletscher design, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Herrmans, 120 lumens REAR LIGHT: Herrmans FENDERS: Chromeplastic, stainless hardware RACK(S): Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity |
| Motor | Bosch Performance Sport, 300% Assist, 65 Nm Torque, motor assist up to 32 km/h (Canadian e-bike limit) |
| Battery | Bosch PowerPack 400 |
| Controller/Display | Bosch Purion |
| Charger | Compact Charger, 100-240V, 2A |
* Subject to change without notice.
Part Numbers
| Option | SKU |
|---|---|
| Black / One Size | 210000050311 |
