Details

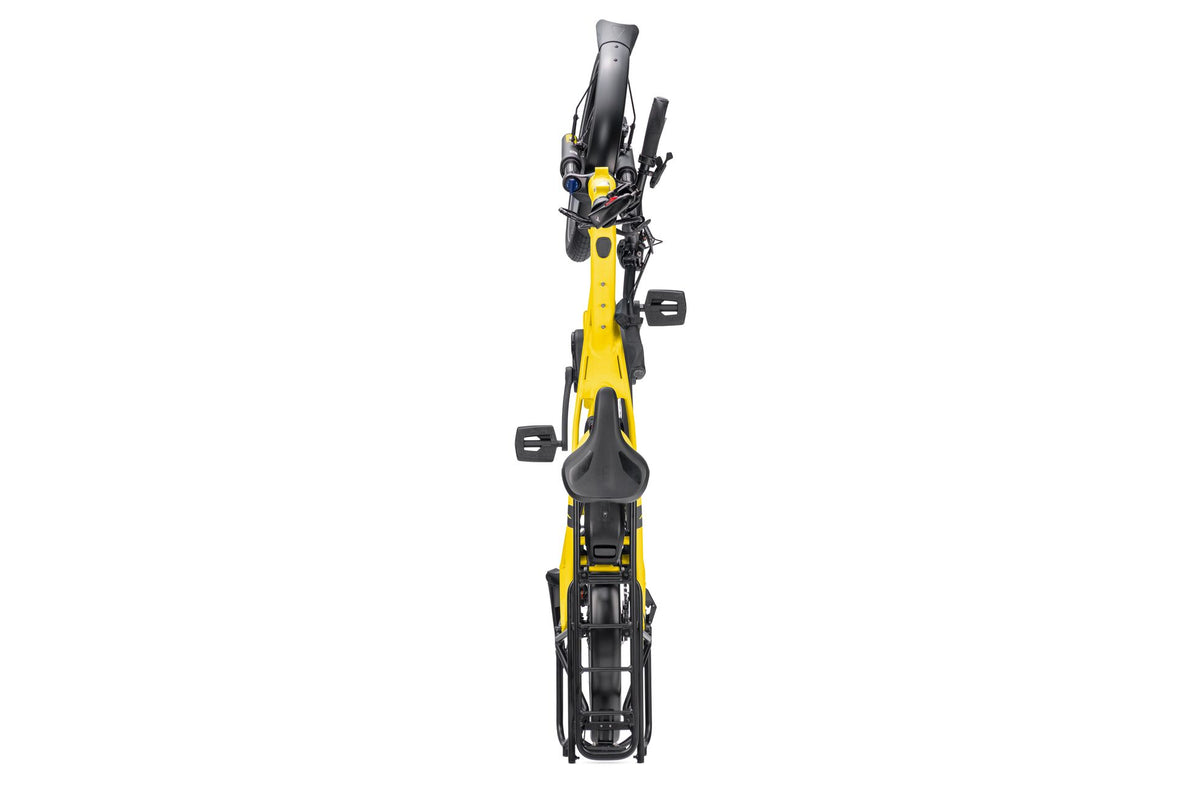

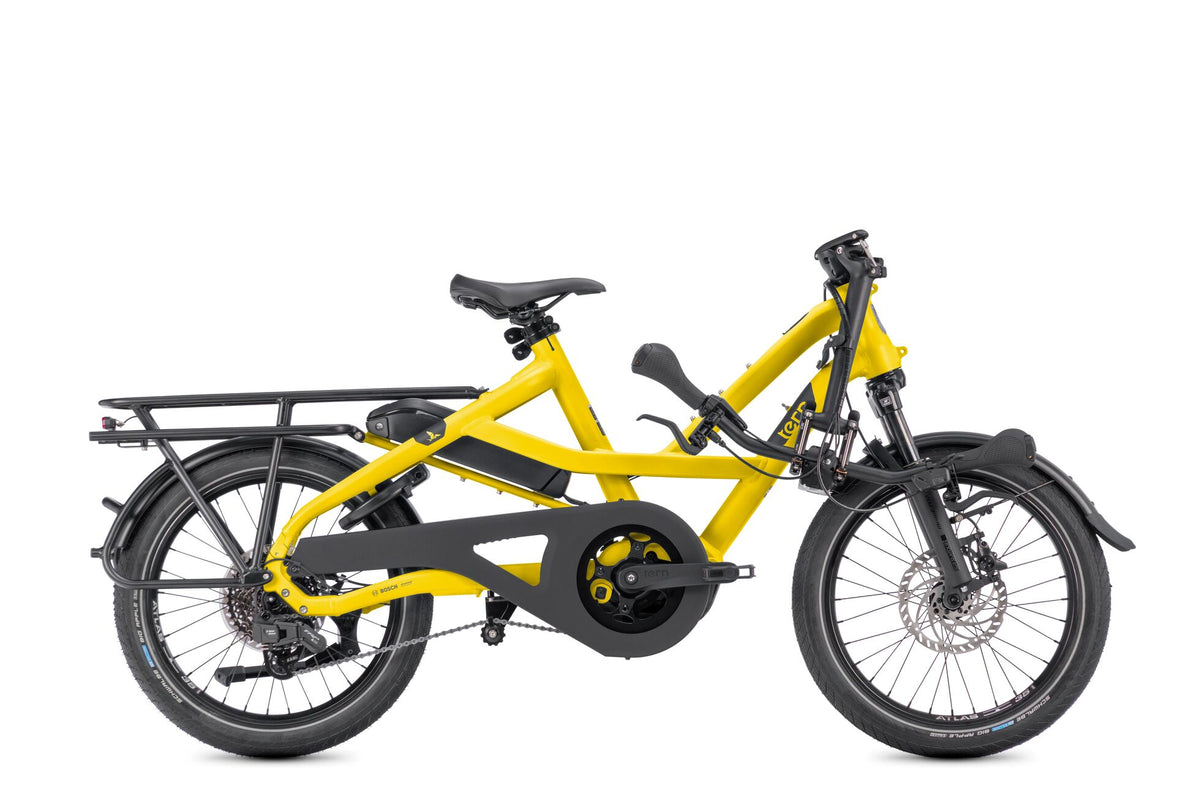

The Tern HSD Gen 3 is a compact electric cargo bike: about the length of a regular bike, but rated to a 190 kg gross vehicle weight with an 80 kg rear rack, so it carries a child, groceries or a week of commuting gear. A longer wheelbase and low centre of gravity keep it stable under load, Magura hydraulic disc brakes and a Suntour suspension fork handle the stopping and the bumps, and the tool-free cockpit adjusts to fit riders from 150 to 200 cm, so the whole family can share it. The handlebar folds in about 5 seconds for tighter parking and storage.
The P10e is the strongest HSD: the Bosch Performance Line PX motor gives 90 Nm and up to 600% assist, and Bosch eShift with a wireless TRP E.A.S.I. 10-speed derailleur changes gear for you based on your preferred cadence.
Specifications

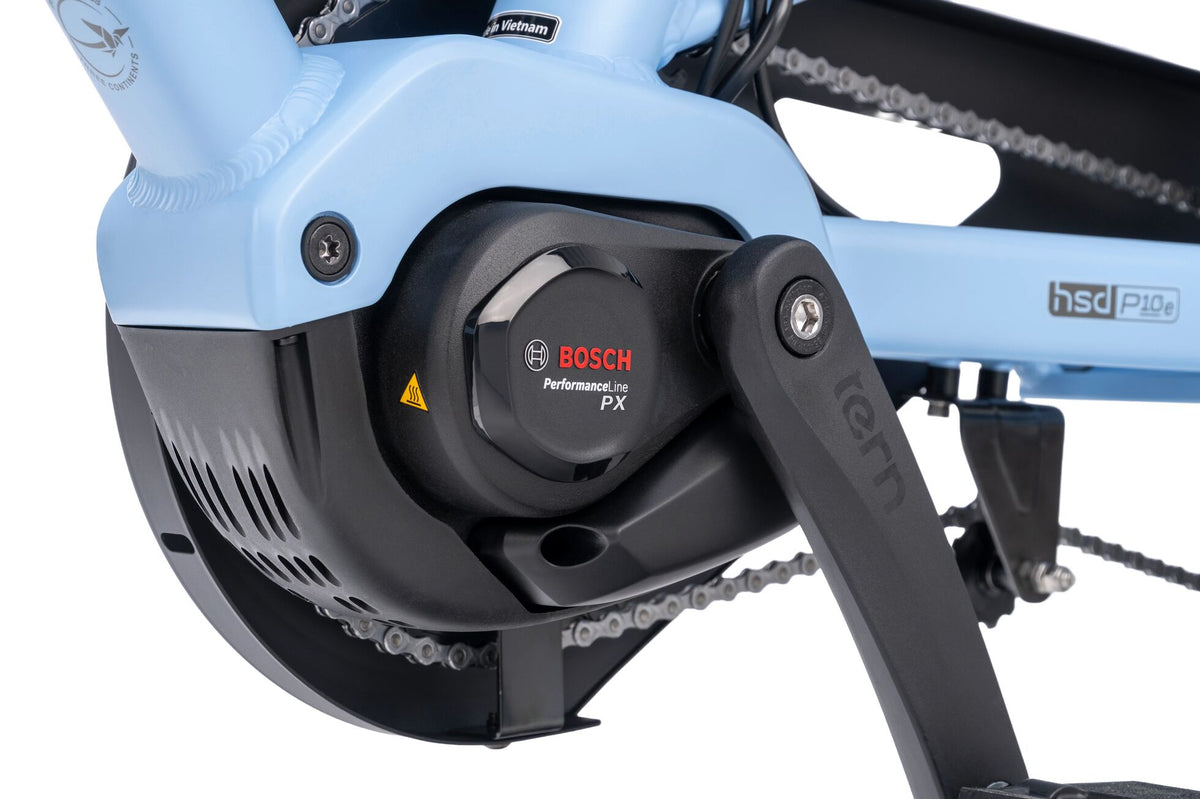

| Motor | Bosch Performance Line PX Smart System, 90 Nm, up to 600% assist |
| Battery | Bosch PowerPack 545 |
| Range | 56–107 km (35–67 mi) |

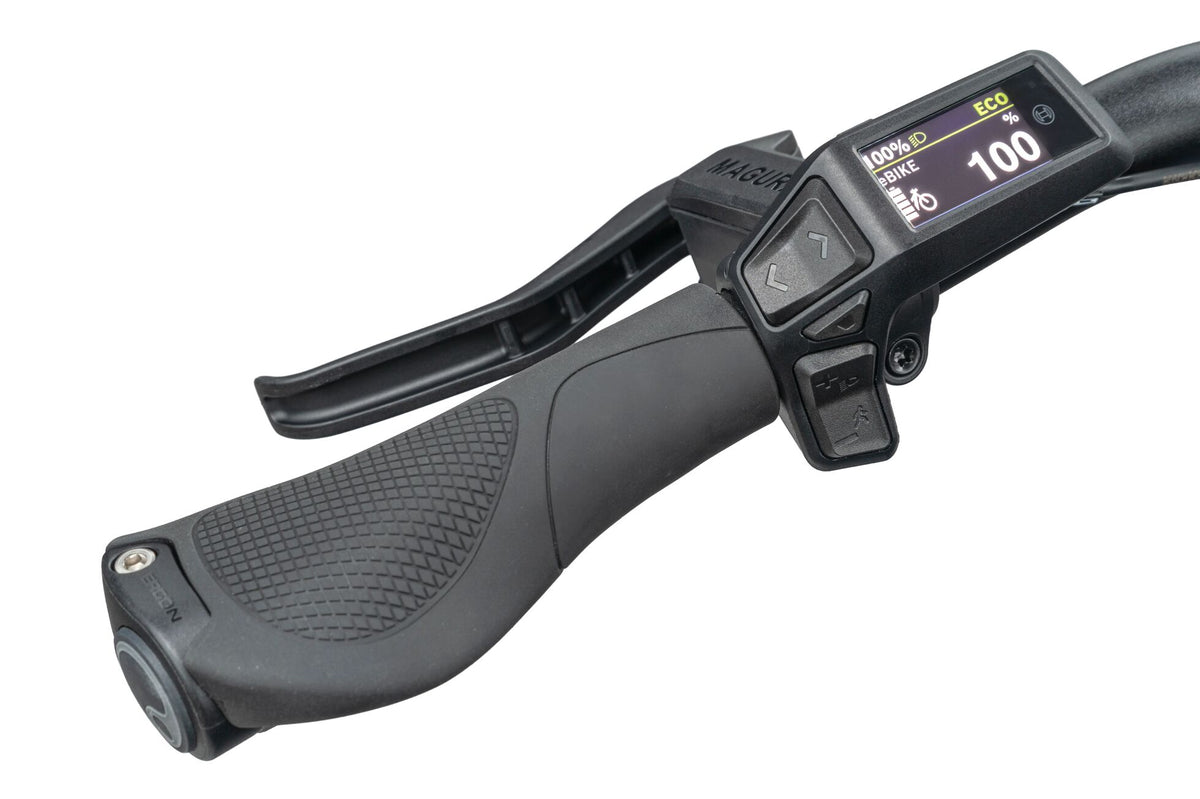

| Display | Bosch Purion 200, eBike Flow app, electronic bike lock |
| Drivetrain | TRP E.A.S.I. A10 10-speed with Bosch eShift automatic shifting, Shimano CUES 11–39T cassette, KMC chain |
| Brakes | Magura hydraulic disc, 180 mm rotors front and rear |
| Fork | Suntour custom for Tern, 32 mm stanchions, thru-axle |
| Frame | Tern HSD 6061 aluminum, one size, EN 17860 certified to 190 kg |
| Wheels and tires | 20" Tern Atlas H cargo wheels, Schwalbe Big Apple 55-406 with puncture protection |
| Rider height | 150–200 cm (4'11"–6'7") |
| Max load | 190 kg gross vehicle weight; rider up to 130 kg; rear rack 80 kg |
| Weight | 28.3 kg (62.4 lb) |
| Size | 174 × 112.5 × 68 cm; 166 × 42 × 87 cm with the handlebar folded |
| Included | Atlas H rear rack, aluminum fenders, full chain cover, rear kickstand, Valo Direct 190-lumen headlight, Herrmans tail light, AXA frame lock keyed to the battery, brass bell |
| Certification | UL 2849 and EN 17860 |

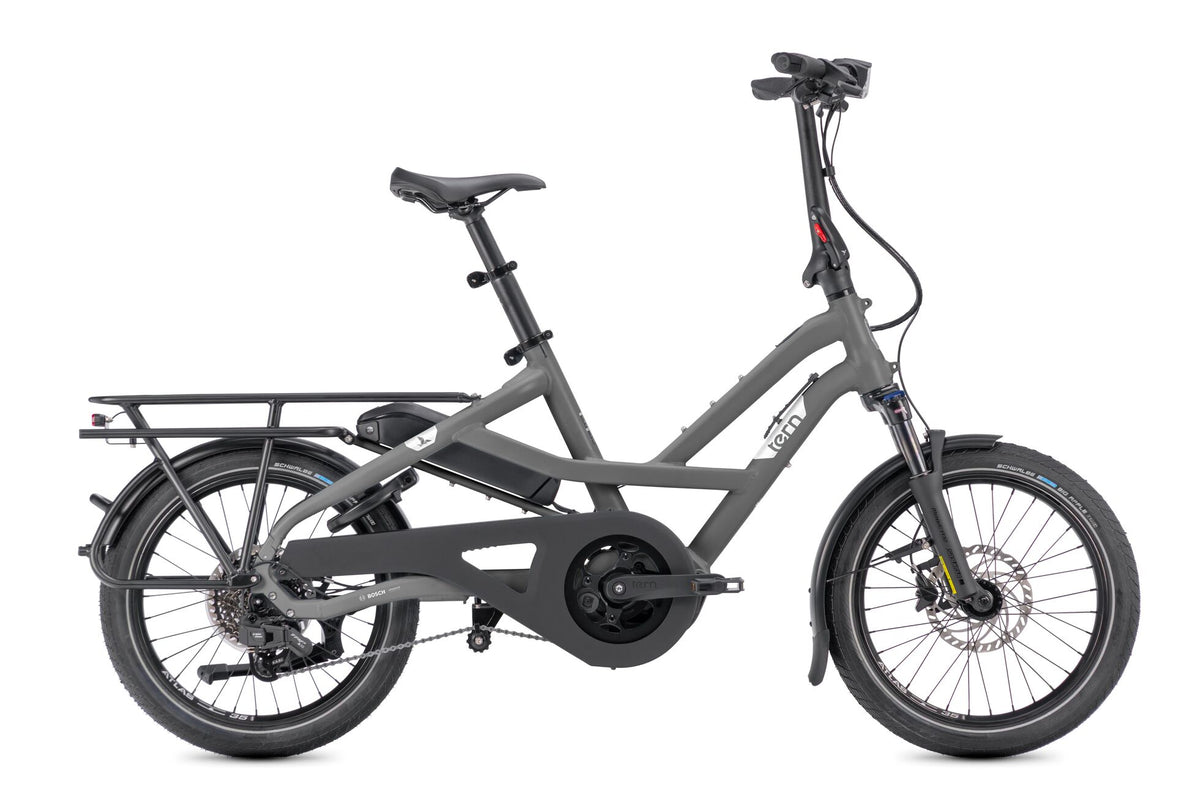

| Colors | Satin Sky Mist, Satin Honey, Satin Basalt |
