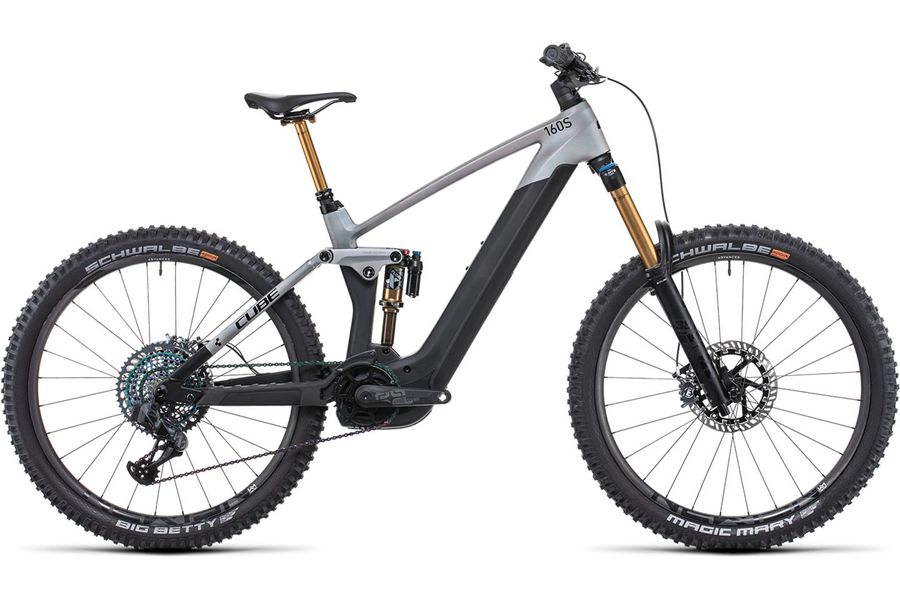

CUBE Bikes Stereo Hybrid 160 HPC SLT 625 (2022)

Details

The Stereo Hybrid 160 HPC 750's frame is designed to blend world-class trail-taming abilities with superb handling and more range than ever before. With the high-capacity 750Wh battery and fourth-generation Bosch drive unit housed entirely inside the down tube, it's as powerful as it is good to look at. Hidden by a cover with shock protection, push-button access and a hidden lock, the battery is both secure and easy to access. Integrated cable routing removes cable holes from the head tube area for greater strength and a neater appearance. The trunnion shock mount, oversize linkage bearings, Boost 148 rear end and 1.5in head tube all contribute to accurate tracking, even when it's all coming at you thick and fast. And sorted, race-inspired geometry gives you the advantage you need to show the trail exactly who's boss.
This is the e-MTB that re-writes the rules. Powered by Bosch's fourth-generation CX drive system and a high-capacity 750Wh battery for more range than ever, our Stereo Hybrid 160 HPC SL 750's blend of gravity prowess and all-round trail ability sets it apart. The RockShox Zeb Select fork's bump-swallowing ability works with the Deluxe Select+ rear shock and carefully tuned kinematics to tame any trail. Shimano's legendary XT 1x12 transmission gives you the range you need to tackle any climb. And powerful, progressive Shimano hydraulic disc brakes - with oversize rotors front and rear - combined with a remote dropper post put you in full control. It's time to get your enduro on.
Geometry
Bike Sizes:
18" / 27.5 / Medium
20" / 27.5 / Large
22" / 27.5 / X-Large
A. Reach
453.4mm
479.8mm
504.5mm
B. Stack
616.1mm
626.9mm
643.3mm
C. Standover
769.9mm
769.3mm
792.6mm
D. Effective Top Tube
600mm
630mm
660mm
E. Head Tube Angle
65°
65°
65°
F. Head Tube Length
120mm
132mm
150mm
G. Seat Tube Angle
76°
76°
76°
H. Seat Tube Length
420mm
460mm
490mm
J. Bottom Bracket Drop
12.5mm
12.5mm
12.5mm
M. Wheelbase
1224.7mm
1256.2mm
1288.5mm
O. Chainstay Length
441.5mm
441.5mm
441.5mm
