Pre-order now — Reserve yours from the first allocation arriving at Cit-E Cycles.
Details

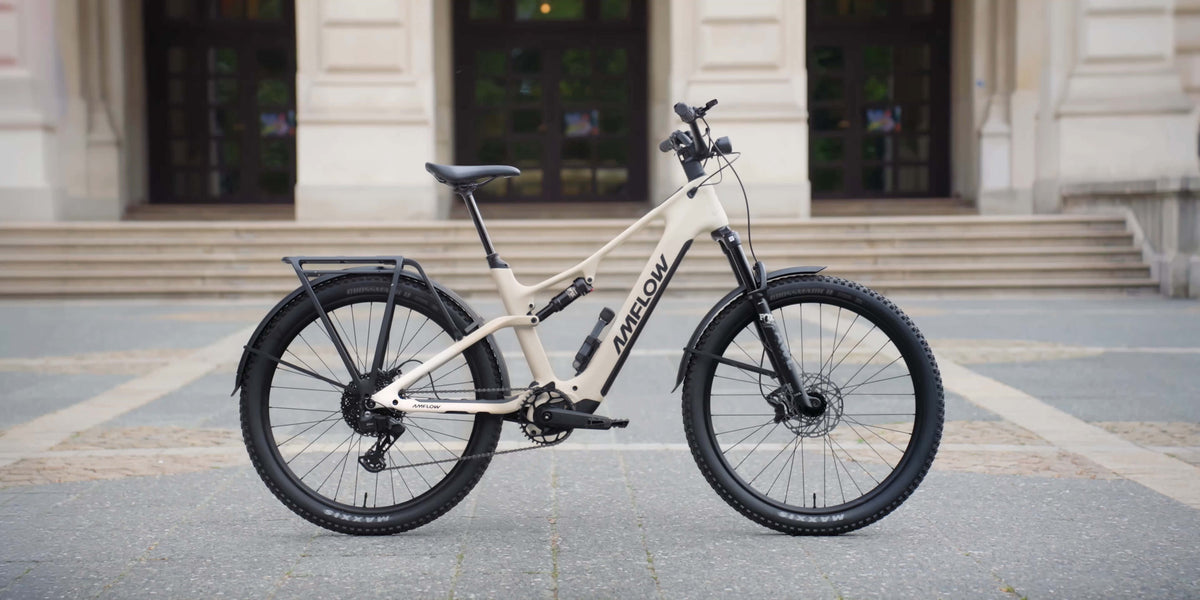

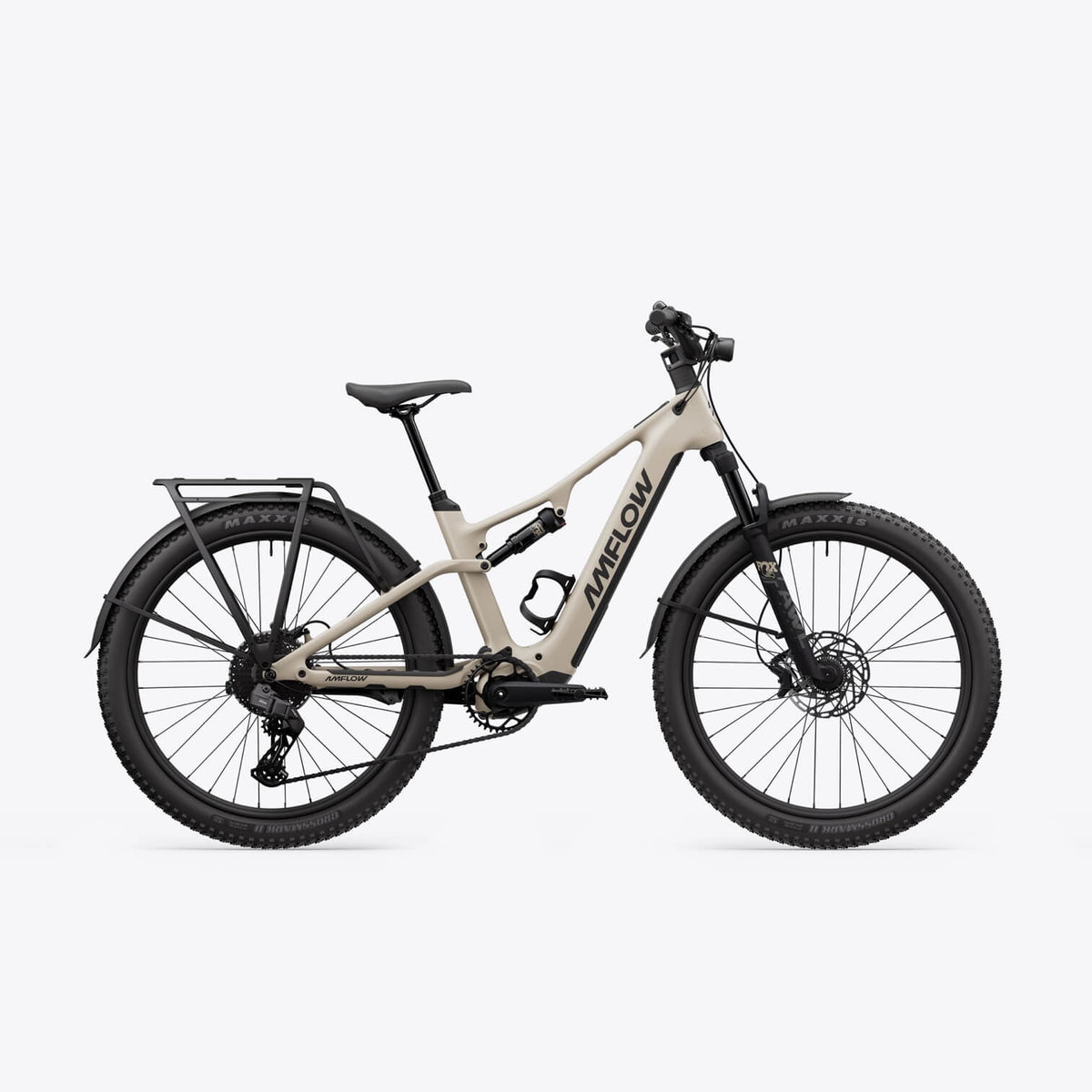

The Amflow TL Carbon is a full-suspension "SUV" e-bike built for trail riding, commuting and loaded touring. A 2.9 kg full-carbon frame carries the DJI Avinox M2 mid-drive (125 Nm peak torque, 1,100 W peak power) and a removable 800 Wh battery rated for up to 172 km — with an optional 480 Wh second battery taking capacity to 1,280 Wh. FOX suspension gives 120 mm of travel up front and 105 mm at the rear, TRP electronic shifting and Tektro 4-piston brakes come standard, and it ships ready to travel with a rear rack, mudguards, lights, kickstand and dropper post. Ships in Silica Beige.Specifications
| Motor | Avinox M2 mid-drive, 250 W rated, 1,100 W peak, 110 Nm nominal / 125 Nm peak |

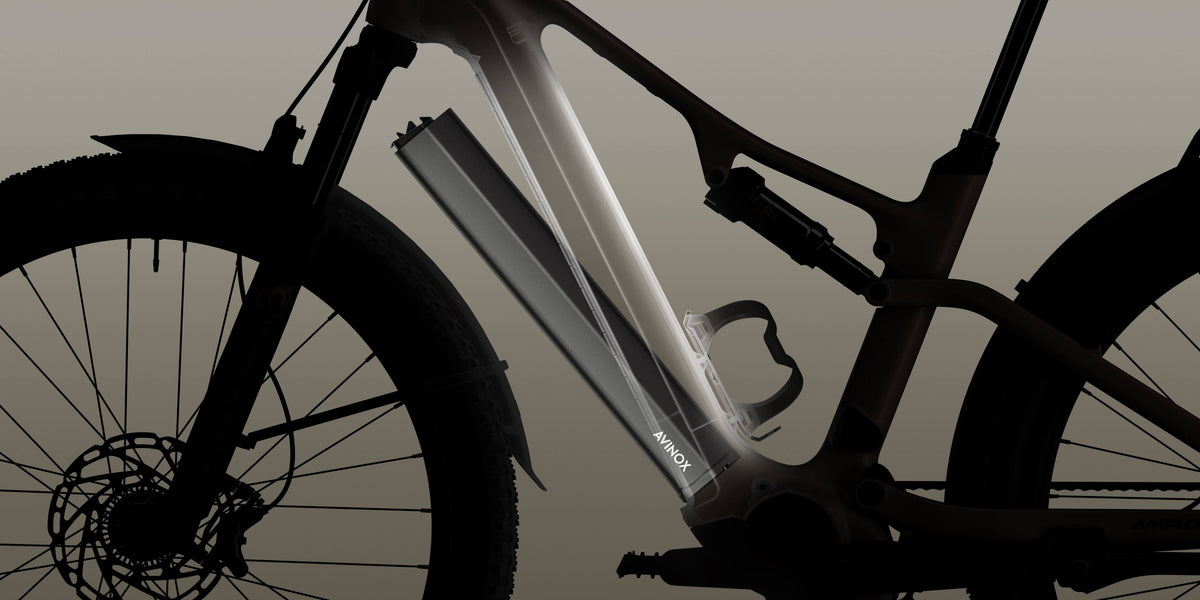

| Battery | Avinox RS800, 800 Wh, removable |
| Range Extender | Optional Avinox RS480 480 Wh second battery (up to 1,280 Wh total) |
| Range | Up to 172 km (800 Wh, Eco mode) |
| Charger | Avinox 4A, 168 W |
| Travel | 120 mm front / 105 mm rear |

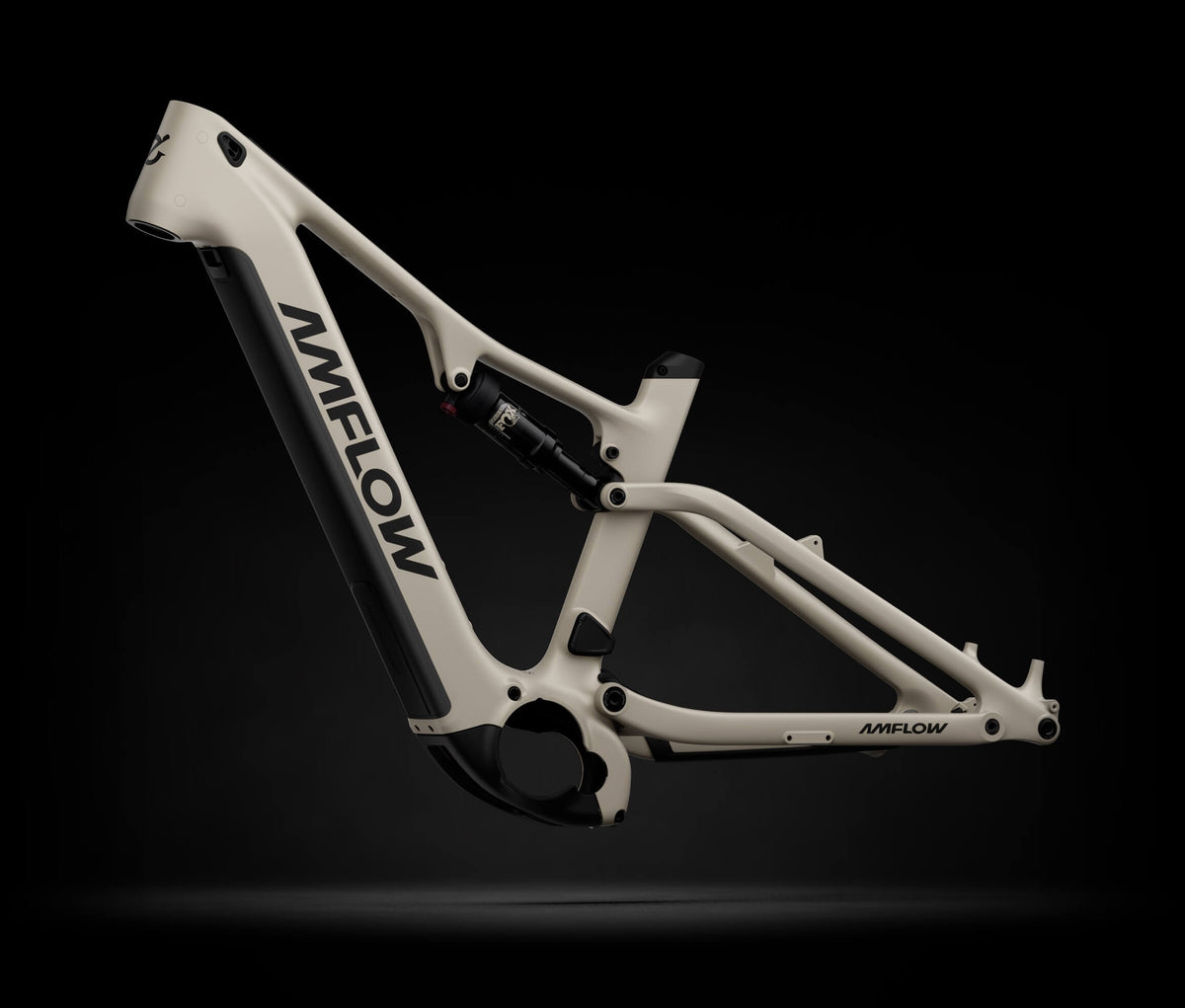

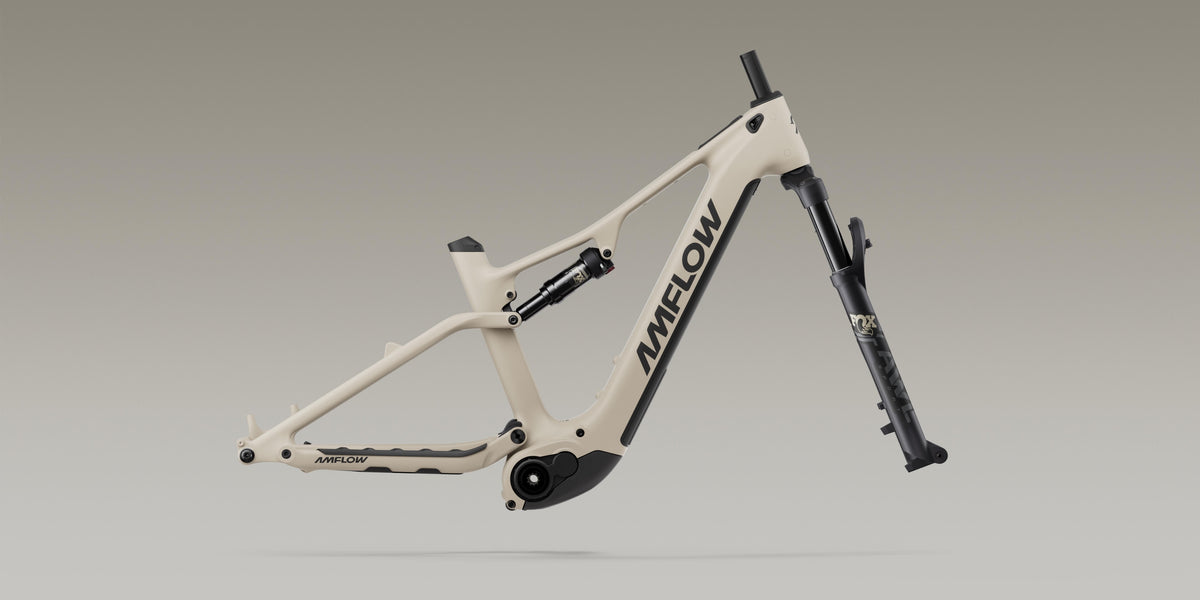

| Frame | Full carbon (2.9 kg), rack, mudguard and trailer mounts |
| Fork | FOX AWL Sport, 120 mm, RAIL 2.0 damper, 15×110 Kabolt axle |
| Shock | FOX FLOAT Rhythm, 190×45 mm |
| Drivetrain | TRP E.A.S.I. electronic rear derailleur, 10-speed 11–43T, 38T chainring, Avinox SmoothShift |
| Brakes | Tektro TKD173 4-piston hydraulic disc, 180 mm rotors |
| Wheels | Amflow HTA-25 alloy, 27.5" (29" compatible) |
| Tires | Maxxis Crossmark II 27.5×2.35 EXO |
| Display | Avinox DPC100 2" OLED with two wireless remotes |
| Weight | 25.5 kg (S/M) / 25.9 kg (L/XL) as shipped with rack, mudguards, lights and pedals |
| Max Load | Rider up to 125 kg; ~200 kg total including rack loads |
| Included | Rear rack, mudguards, front and rear lights, kickstand, dropper post (150 mm S/M, 170 mm L/XL), pedals, bottle cage |
| Rider Height | S 155–162 cm · M 162–175 cm · L 175–182 cm · XL 182–190 cm |
