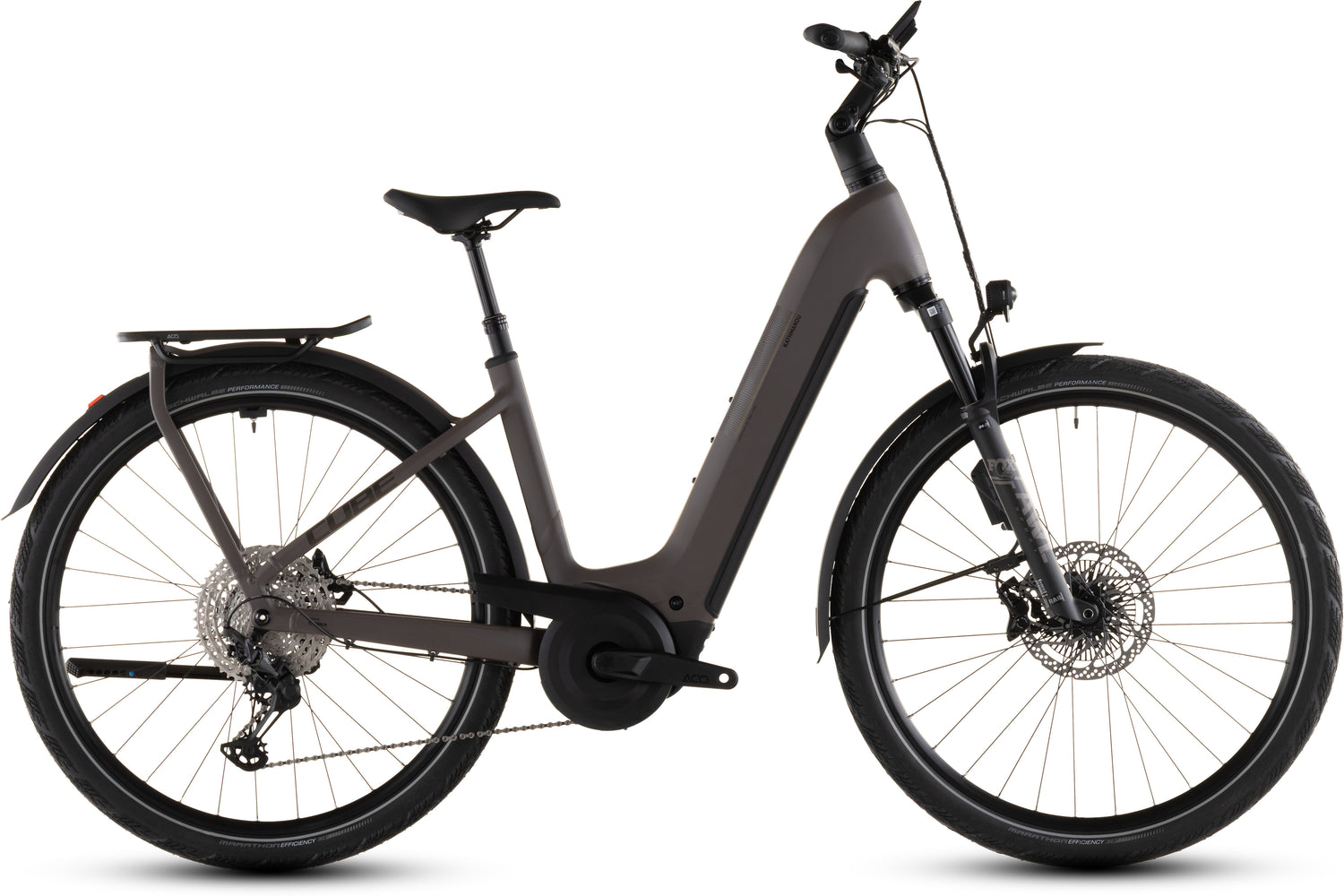

CUBE Bikes Kathmandu Hybrid EXC 750 Easy Entry (2023)

Details

Designed for comfort, versatility, and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
The Kathmandu Hybrid EXC 750 features our largest-capacity battery, so you can ride for longer. We've kept all the best bits, like Bosch's fourth-generation CX drive system, and added the reliability and huge range of Shimano's Deore 1x12 gears – which will help you tackle any route with ease. Powerful four-piston Shimano hydraulic disc brakes have the stopping power to keep you safe in all weather. A suspension seatpost, adjustable stem, and air-sprung Suntour suspension fork ensure you're comfortable, even for long days out. And, the Integrated Carrier 3.0, mudguards, lighting system, and kickstand give you the tools you need for any errand or adventure.
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high-capacity batteries. You'll wonder how you ever managed without it.
Geometry
Sizes:
SIZE
X-Small
Small
Medium
Large
Seat tube (mm)
440
480
520
560
Top Tube Horizontal (mm)
600
600
610
620
Seat angle (°)
75°
75°
75°
75°
Head tube angle (°)
68.5°
68.5°
68.5°
68.5°
Chainstays (mm)
490
490
490
490
Head tube (mm)
150
150
155
160
Wheelbase (mm)
1168
1168
1179
1189
BB-Height to Hub (mm)
75
75
75
75
Protrusion height - 80mm
495
495
495
495
Reach (mm)
393
393
402
411
Stack (mm)
673
673
678
682
