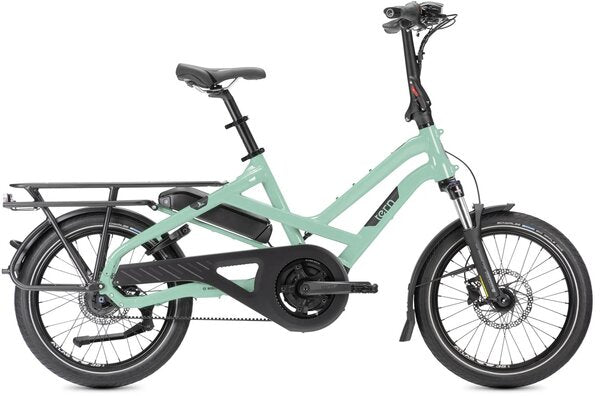

Tern HSD P5i
Financing available
Easy approval • Flexible terms
Tern HSD P5i - Sea Breeze / One Size is backordered and will ship as soon as it is back in stock.
Checking availability...
View all stores
Tern HSD P5i - Sea Breeze / One Size is backordered and will ship as soon as it is back in stock.
Details
Mighty But MiniThe HSD is the right amount of bike if you want the benefits of a cargo bike but still fancy the convenience and handling of something less bulky. Lean and nimble, the HSD is shorter than a regular bike yet capable of hauling a max gross vehicle weight (MGVW) of 180 kg (397 lb). And thanks to best-in-class components, rigorous lab testing, and UL 2849 certification, you can count on having a safe, reliable bike.
What makes it a P5i?
- Class 1 Bosch Performance Line motor with Bosch Smart System provides up to 75 Nm of torque and increases your pedaling power by up to 340%
- Detachable and easy-to-understand Intuvia 100 display
- Silent, smooth, and virtually maintenance-free Gates CDX Belt Drive
- Shimano Nexus INTER-5E internally geared hub
HSD Highlights:
- Control all Smart System functions at your fingertips via the Bosch eBike Flow App: keep your e-bike system up-to-date with over-the-air updates, activate the eBike Lock, customize riding modes, view bike information, connect to dealers, and more!
- Bosch PowerPack 545 battery provides a long range of up to 121 km (76 mi)
- Cargo and passenger-ready: large rear rack capacity of 80 kg (176 lb) means you can carry one infant to a medium-sized adult passenger, or lots of cargo
- Fits riders 150 - 195 cm (4'11" - 6'5") with an easily-adjustable cockpit
- Tested for safety and reliability: frame and fork are EFBE-tested up to the 180 kg (397 lb) Maximum Gross Vehicle Weight
SUGGESTED RIDER HEIGHT: 150 - 195 cm (59.1 - 76.8 in)
Specs
| Frame | Tern HSD, 6061-AL, patented design, Tern sliding dropouts, EFBE Tri-Test approved: 180 kg |
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 180 kg |
| Wheels | Tern Atlas H, cargo wheel |
| Rims | Tern Atlas H, wide 35 mm |
| Hubs | FRONT HUB: Novatec, Thru-axle, sealed bearingsREAR HUB: Shimano Nexus INTER-5E |
| Spokes | Stainless steel |
| Tires | Schwalbe Big Apple, 55-406, puncture protection, Reflex |
| Bottom Bracket | Motor integrated |
| Crankset | Tern HSD custom, Gates CDX CNC machined beltring |
| Shifters | Shimano Nexus INTER-5E |
| Cassette/Freewheel | Gates CDX, precision CNC machined cog |
| Chain | Gates Carbon Drive CDX belt |
| Brakes | FRONT BRAKE: Shimano, hydraulic disc, 180 mm rotorREAR BRAKE: Shimano, hydraulic disc, 160 mm rotor |
| Brake Levers | Shimano, hydraulic disc |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper by FSA, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Tern Telescope, 34.9/30.9 mm, 2014-AL |
| Saddle | Tern Upright by Velo |
| Pedals | Urban with non-slip surface |
| Accessories & Extras | BELL: Pitch Plus, brassCHAINGUARD: Tern Custom, full chain coverKICKSTAND: Ursus, rear mountLUGGAGE SOCKET: Combo MountFRONT LIGHT: Tern Valo Direct, 190 lumensREAR LIGHT: Herrmans H-Trace, for eBikeFENDERS: SKS, stainless hardwareRACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting, 80 kg capacityFRAME LOCK: ABUS, keyed-alike with Bosch battery |
| Motor | Bosch Performance, 340% Assist, 75 Nm Torque, Class 1 max speed 20 mph (US) |
| Battery | Bosch PowerPack 545 |
| Controller/Display | Bosch Intuvia 100 w/ LED remote, 4 mode selectable, walk assist, connectivity with Bosch eBike Flow app, electronic bike lock |
| Charger | 220V, 4A (EU); 100-240V, 4A (US) |
* Subject to change without notice.
Part Numbers
| Option | SKU |
|---|---|
| Dragon Fruit / One Size | 210000049699 |
| Sea Breeze / One Size | 210000049700 |
