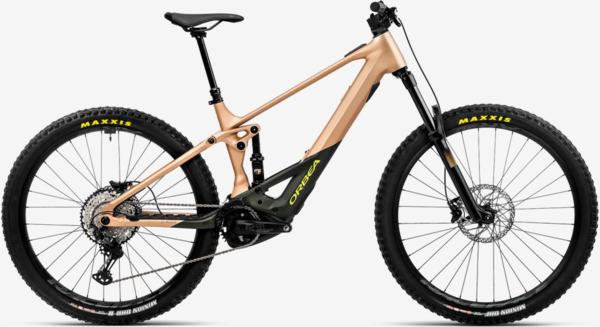

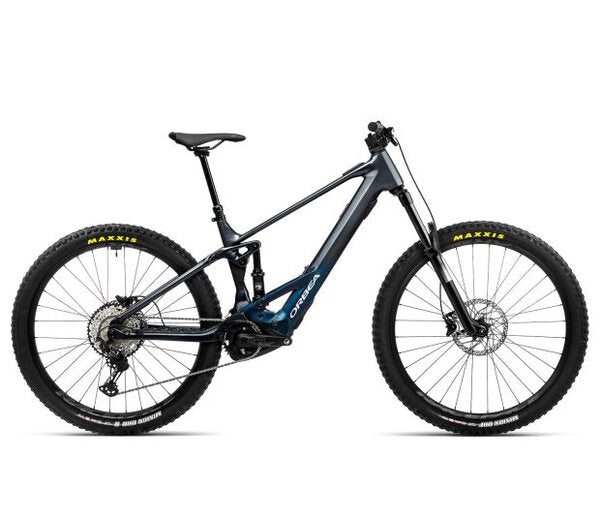

Orbea Wild H30 20mph
$5,999.00
$7,999.00
Unit price
Taxes, discounts and shipping calculated at checkout.
Financing available
Easy approval • Flexible terms
Orbea Wild H30 20mph - Nori Green (Matt) / Medium is backordered and will ship as soon as it is back in stock.
Checking availability...
View all storesLoading store availability...
Test ride in-store
2-year warranty
Expert assembly
14+ years experience
Orbea Wild H30 20mph
From
$5,999.00
$7,999.00
Unit price
Orbea Wild H30 20mph - Nori Green (Matt) / Medium is backordered and will ship as soon as it is back in stock.
Details
We could tell you how Wild has the most powerful motor or battery capacity on the market. But we aren't going to. Wild takes us beyond such trivialities and into a world beyond power, where the ride is paramount, where the trails are endless and full of flow. Leave heavy, numb e-bikes behind and free your Wild.Geometry

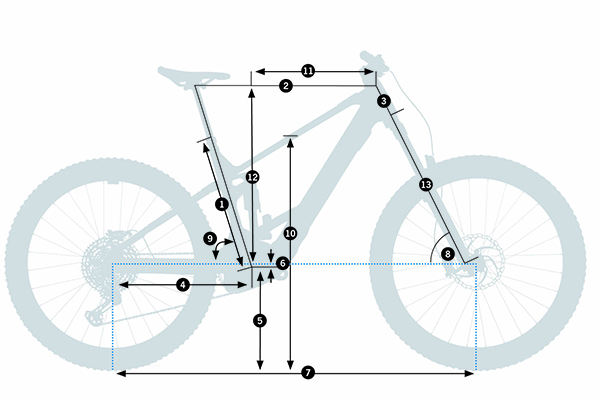

Geometry Chart:
Small
Medium
Large
X-Large
11 - SEAT TUBE (C-T)
415
415
435
460
22 - TOP TUBE (EFF)
573
595
622
649
33 - HEAD TUBE
110
120
130
140
44 - CHAINSTAY
448
448
448
448
55 - BB HEIGHT
353
353
353
353
66 - BB DROP
25
25
25
25
77 - WHEELBASE
1223
1247
1277
1306
88 - HEAD ANGLE
64º
64º
64º
64º
99 - SEAT ANGLE
77,5º
77,5º
77,5º
77,5º
1010 - STANDOVER
700
700
700
700
1111 - REACH
435
455
480
505
1212 - STACK
621
630
639
648
1313 - FORK LENGTH
575
575
575
575
14RAKE
44
44
44
44
Sizing
Sizes:
Frame Size
Rider height (in)
Small
59.1"-68.9"
Medium
63.0"-72.8"
Large
66.9"-76.8"
X-Large
70.9"-80.7"
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Wild Hydro 2023, 160mm travel, 29" wheels, Concentric Boost 12x148 |
| Fork | RockShox 35 Silver TK Q15x110 Solo Air 160mm |
| Rear Shock | Fox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm |
| Wheels | Race Face AR 30c Tubeless Ready |
| Tires | Maxxis Minion DHF 2.60" 120 TPI FB 3C Maxx Terra Exo+ TRMaxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR |
| Crankset | e*thirteen Plus Alu |
| Chainrings | e*thirteen e*spec Direct Mount 34T Boost |
| Shifters | Shimano Deore M6100 |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
| Cassette/Freewheel | Shimano CS-M6100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Brakes | Shimano MT410 Hydraulic Disc |
| Handlebars | OC Mountain Control MC30, Rise20, Width 800 |
| Stem | OC Mountain Control MC20, 0º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Seatpost | OC Mountain Control MC20, 31.6mm, Dropper |
| Saddle | Selle Royal Vivo 145x269mm |
| Pedals | Sold separately |
| Motor | BOSCH Performance Line CX BDU3741 |
| Battery | BOSCH Powertube 625Wh Horizontal |
| Controller/Display | BOSCH System Controller BCR3100 |
| Charger | Bosch Charger 4A (110V) BPC3410 |
* Subject to change without notice.
Part Numbers
| Option | SKU |
|---|---|
| Baobab Brown/Nori Green (Matt) / Small | 210000048867 |
| Baobab Brown/Nori Green (Matt) / Medium | 210000048870 |
| Baobab Brown/Nori Green (Matt) / Large | 210000048868 |
| Baobab Brown/Nori Green (Matt) / X-Large | 210000048869 |
| Basalt Grey/Dark Teal (Gloss) / Small | 210000048859 |
| Basalt Grey/Dark Teal (Gloss) / Medium | 210000048860 |
| Basalt Grey/Dark Teal (Gloss) / Large | 210000048861 |
| Basalt Grey/Dark Teal (Gloss) / X-Large | 210000048862 |
| Corn Yellow/Metallic Night Black (Gloss) / Small | 210000048863 |
| Corn Yellow/Metallic Night Black (Gloss) / Medium | 210000048864 |
| Corn Yellow/Metallic Night Black (Gloss) / Large | 210000048865 |
| Corn Yellow/Metallic Night Black (Gloss) / X-Large | 210000048866 |
