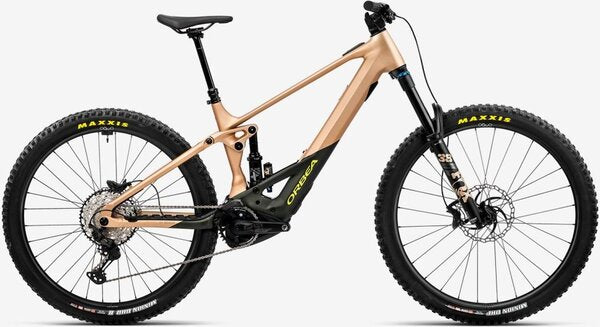

Orbea Wild H10 20mph

Details

The best materials, the cleverest designs and key technologies such as our SBS design mean that Wild is one the lightest full power ebikes.
We could tell you how Wild has the most powerful motor or battery capacity on the market. But we aren't going to. Wild takes us beyond such trivialities and into a world beyond power, where the ride is paramount, where the trails are endless and full of flow. Leave heavy, numb e-bikes behind and free your Wild.

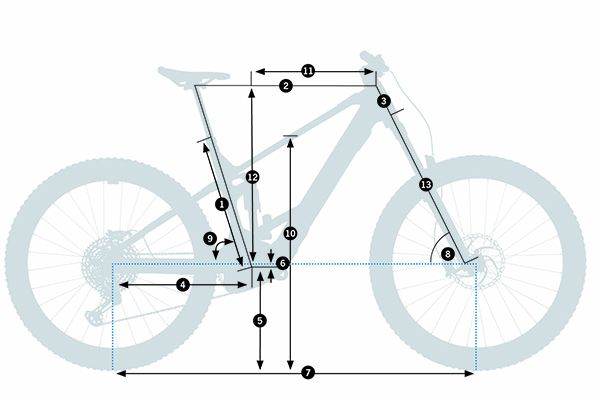

Geometry
Geometry Chart:
Small
Medium
Large
X-Large
11 - SEAT TUBE (C-T)
415
415
435
460
22 - TOP TUBE (EFF)
573
595
622
649
33 - HEAD TUBE
110
120
130
140
44 - CHAINSTAY
448
448
448
448
55 - BB HEIGHT
353
353
353
353
66 - BB DROP
25
25
25
25
77 - WHEELBASE
1223
1247
1277
1306
88 - HEAD ANGLE
64º
64º
64º
64º
99 - SEAT ANGLE
77,5º
77,5º
77,5º
77,5º
1010 - STANDOVER
700
700
700
700
1111 - REACH
435
455
480
505
1212 - STACK
621
630
639
648
1313 - FORK LENGTH
575
575
575
575
14RAKE
44
44
44
44
Sizing
Sizes:
Frame Size
Rider height (in)
Small
59.1"-68.9"
Medium
63.0"-72.8"
Large
66.9"-76.8"
X-Large
70.9"-80.7"
Due to supply-chain issues, Specs are subject to change without notice.
