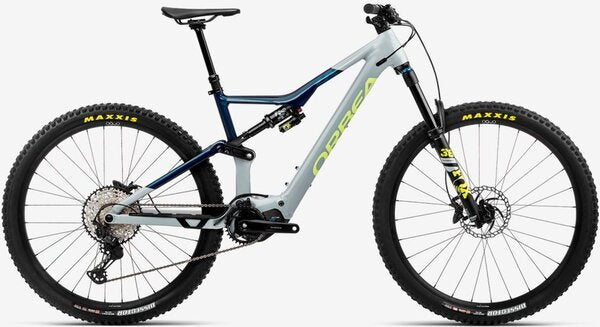

Orbea Rise H10 20mph

RISE BEYOND
A NEW STANDARD IN LIGHTWEIGHT EBIKES
Rise shook up the lightweight e-MTB world on its launch with its "more bike, less E" philosophy. Simply the most natural feeling ebike on the market, bringing riders closer to the trail and shattering expectations about how an ebike should ride.
Rise returns, lighter than ever and with more battery options, ready to open up longer adventures and take you to even more epic locations.
SUPERCHARGE YOU
Rider Synergy means that when you pedal harder, RISE responds instantly, multiplying your efforts and shooting you forward just as if you were fitter than ever. The instantaneous, lag-free, power and the way that it is delivered, means that it feels totally natural to be this strong and you just concentrate on the fun of riding.
IT IS ALL ABOUT THE RIDE
Obsessively removing weight means Rise is one of the lightest ebikes in this sector. Rise rewrites the rulebook on ebike handling, floating, popping, manualling, and slicing through the corners as it disappears into the distance.
The reactive, exciting handling owes much to the lack of inertia, but frame rigidity is vital too. Our SBS system helps give a lighter, stiffer frame, meaning we can tune the rigidity much as we do for our non-electric bikes.
MORE RIDING, LESS WEIGHT
More range from smaller, lighter batteries is precisely what our 1.5X factor is all about.
CONFIGURE RISE WITH THE BIGGER 540WH BATTERY, OR THE LIGHTER 360WH BATTERY, DEPENDING ON THE LENGTH OF YOUR TYPICAL RIDE.
The beauty of our Modular Battery Solution is that you can add the Range Extender for the longest rides or leave that extra weight at home when you don't need it.
CLOSER TO THE TRAIL
Simple solutions remove unnecessary complexity, adding reliability, improving aesthetics and removing weight. You won't find rattling battery covers, or a spaghetti of cables on Rise, instead our Clean Cockpit, SIC Cables and SBS battery remove distractions, bringing you closer to the ride.
RISE CARBON AND ALLOY
Rise is available in OMR Carbon, or in our High Polish Alloy. No matter which Rise frame you choose, you can be sure that you are choosing one of the lightest, most playful ebikes out there.

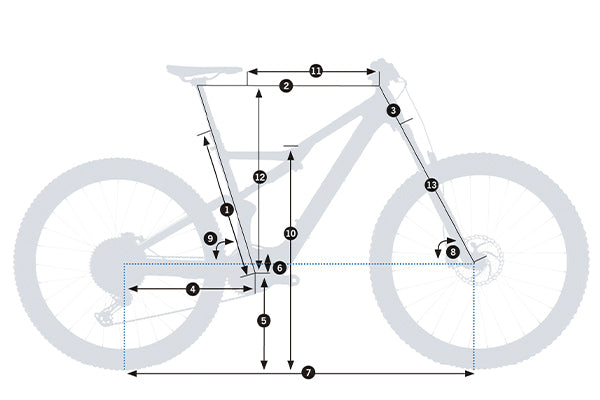

Geometry
Geometry Chart:
Small
Medium
Large
X-Large
1 - SEAT TUBE (C-T)
381
419
457
508
2 - TOP TUBE (EFF)
565
592
619
649
3 - HEAD TUBE
95
105
120
140
4 - CHAINSTAY
445
445
445
445
5 - BB HEIGHT
336
336
336
336
6 - BB DROP*
35/32
35/32
35/32
35/32
7 - WHEELBASE
1180
1205
1229
1255
8 - HEAD ANGLE*
66º/65.5º
66º/65.5º
66º/65.5º
66º/65.5º
9 - SEAT ANGLE*
77º/76.5º
77º/76.5º
77º/76.5º
77º/76.5º
10 - STANDOVER
710
736
766
776
11 - REACH
425
450
474
500
12 - STACK
604
613
627
646
13 - FORK LENGTH
547
547
547
547
Geometry Chart:
CRANK
STEM
HANDLEBAR
DROPPER SEATPOST
Small
165
40
780
390/125
Medium
165
50
780
440/150
Large
170
50
780
440/150
X-Large
170
50
780
480/170
* The handlebar size is centre-centre
Sizing
Sizes:
HEIGHT ( CM )
HEIGHT ( IN )
SIZE
150-165
59.1"-65.0"
Small
160-175
63.0"-68.9"
Medium
170-185
66.9"-72.8"
Large
180-198
70.9"-78.0"
X-Large
*Estimated measurements
Due to supply-chain issues, Specs are subject to change without notice.
