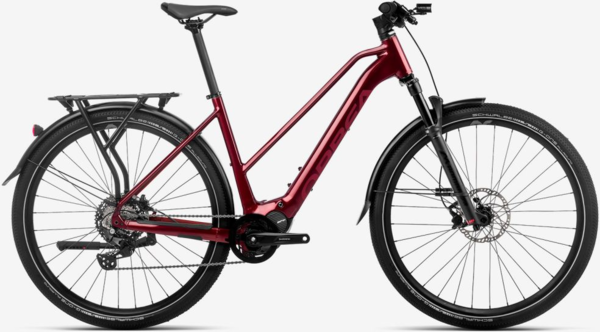

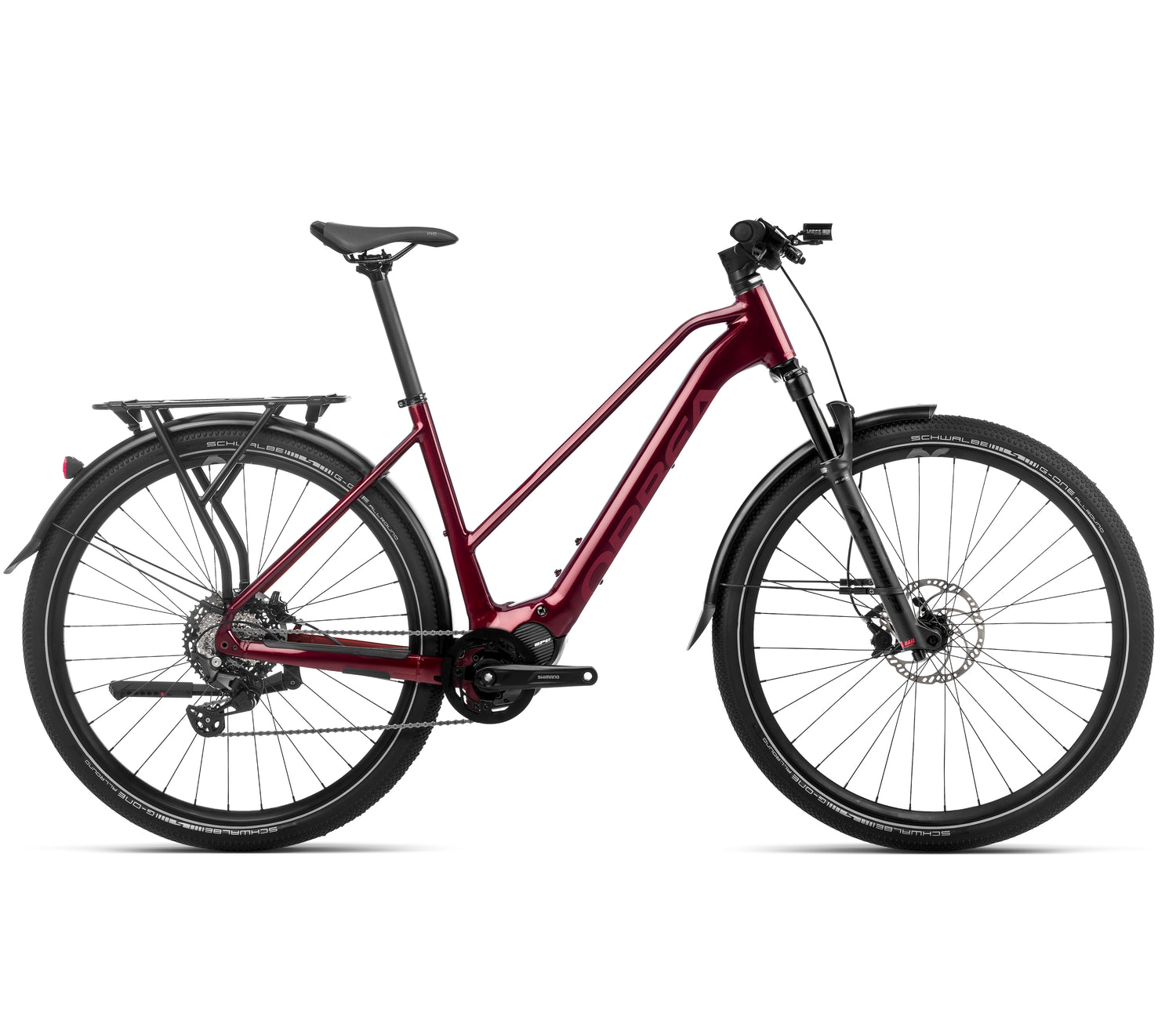

Orbea Kemen Mid 30 20mph

The best tools are ones you use daily – the perfect bike is one that fits seamlessly with your many needs. Tireless, capacious and effortless, Kemen goes beyond simple utility by turning ebike rides into delightful mini-adventures. Whizz through the morning traffic, breath fresh air on your way to work, let Kemen take the strain so you don´t break a sweat. After work take the long way home, escape the bike lane and have an urban adventure.

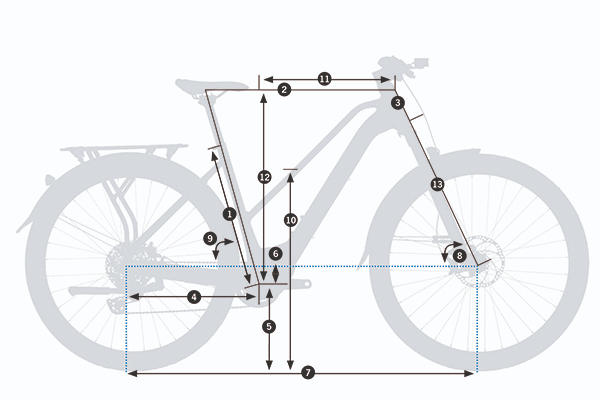

Geometry
Geometry Chart:
Small
Medium
Large
1 - SEAT TUBE (C-T)
400
453
483
2 - TOP TUBE (EFF)
563
576
606
3 - HEAD TUBE
110
115
132
4 - CHAINSTAY
445
445
445
5 - BB HEIGHT
307,5
307,5
307,5
6 - BB DROP
63
63
63
7 - WHEELBASE
1134
1142
1173
8 - HEAD ANGLE
66,5º
67º
67º
9 - SEAT ANGLE
75º
75º
75º
10 - STANDOVER
732
740
743
11 - REACH
405
415
440
12 - STACK
617
624
640
13 - FORK LENGTH
513,5
513,5
513,5
14 - RAKE
44
44
44
Sizing
Sizes:
Frame Size
Rider height (in)
Small
61.1"-66.9"
Medium
65.0"-70.9"
Large
70.1"-74.8"
Due to supply-chain issues, Specs are subject to change without notice.
